Core Highlights
expansion cardThere are 7 full-height direct expansion slots at the rear of the chassis (2×PCIe x16 + 4×PCIe x8 + 1×PCIe x4) for flexible expansion of network cards/graphics cards/fiber optic cards
RAIDSupports multiple RAID 0/1/5/10 disk arrays to protect the stability and security of core business data
BMCSupport BMC remote management port to realize remote power on and off, hardware troubleshooting and operation monitoring
power supplyStandard 650W single power supply, supports optional hot-swappable single/dual redundant power supplies
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information
| Product name | Tower Xeon E5 dual-socket industrial server |
| Product brand | YANKEN |
| Product model | T10-X10 |

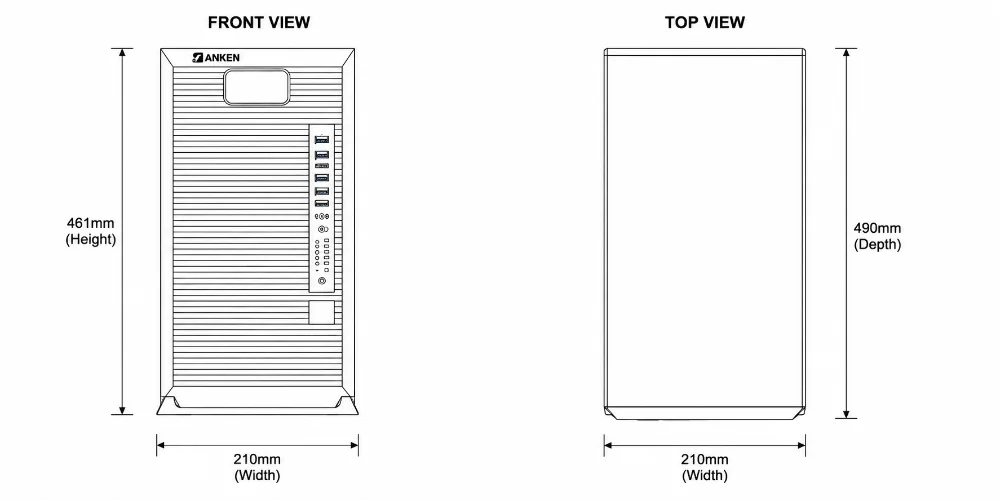

| physical size | 210mm (width) × 490mm (depth) × 461mm (height) |
| hard disk expansion | Built-in 4 SATA hard disk bays, supports the formation of RAID 0/1/5/10 disk arrays |
Technical parameters
| Specification parameters | Intel Xeon E5 dual-socket platform |
|---|---|
| Processor (CPU) | Intel Xeon E5 dual-socket processor |
| Memory (RAM) | Maximum support 256GB |
| Hard disk (Storage) | 4×SATA hard drive |
| Network port (LAN) | 4×Gigabit network port |
| RAID array | Support RAID 0/1/5/10 disk array |
| display interface | VGA display |
| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 + 2×USB3.0 |
| BMC remote management | Support BMC remote management port |
| Expansion slot | 7 full-height direct expansion slots (2×PCIe x16 + 4×PCIe x8 + 1×PCIe x4) |
| power supply | Standard 650W single power supply, optional hot-swappable single/dual redundant power supply |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server |
