Core Highlights

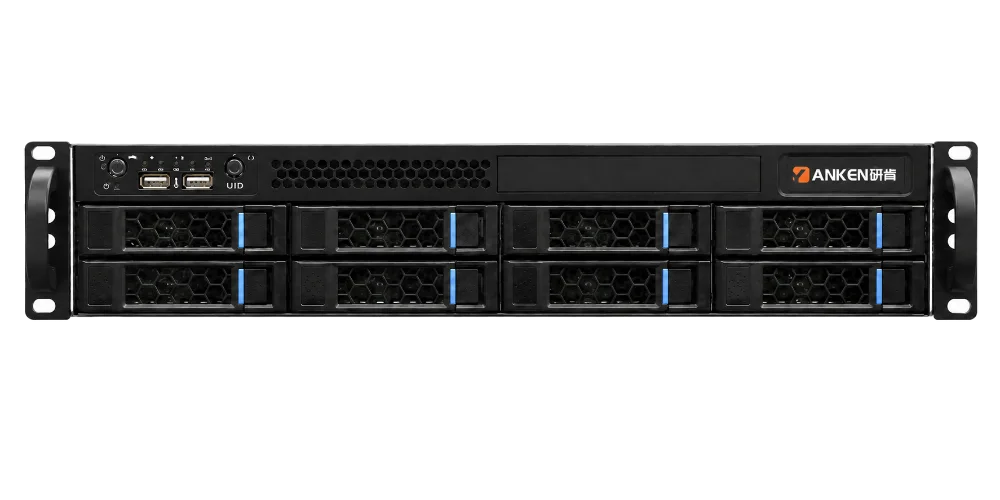

storageComes standard with 8 front hot-swappable hard drive bays, compatible with 2.5/3.5-inch hard drives, and supports RAID 0/1/5/10 arrays
power supplyOptional redundant hot-swappable dual power supplies support uninterruptible online hot-swappable replacement to improve system fault tolerance

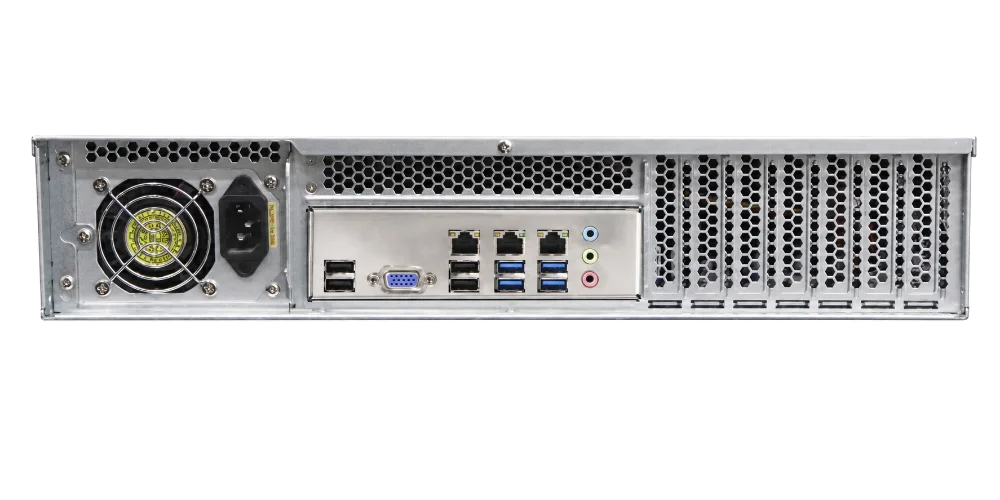

expansion cardThere are up to 7 expansion card slots at the rear, which can be flexibly matched with independent graphics cards, fiber optic network cards or multiple graphics cards.
showNative VGA interface (customizable expandable dual display output card), supports dual-screen synchronous/asynchronous independent display
CabinetCompatible with standard 19-inch rack cabinet installation, suitable for centralized deployment in computer rooms or control centers
systemThe default free pre-installed Server system is shipped, compatible with Windows/Linux/Ubuntu/CentOS
Application scenarios
Basic product information

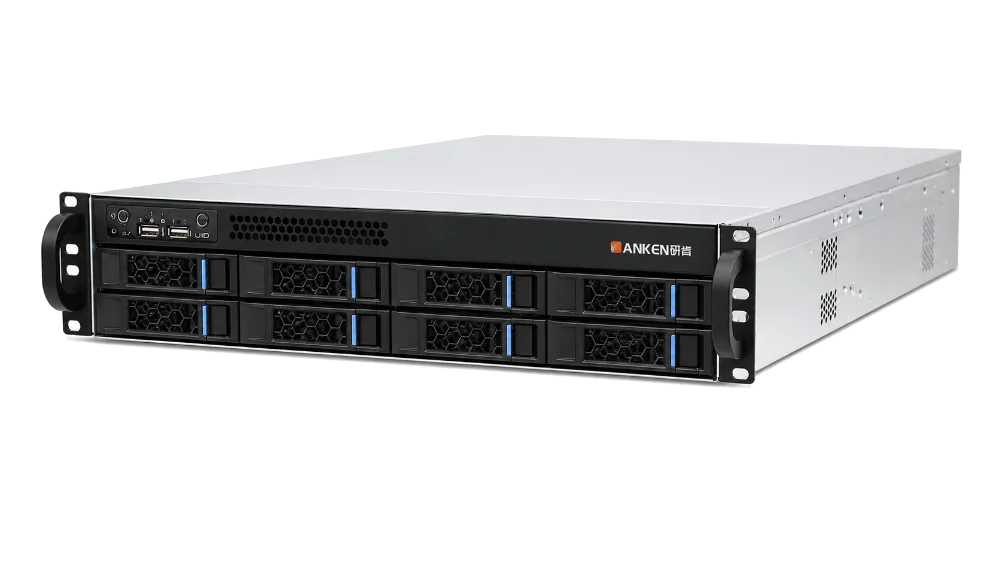

| Product name | 2U hot-swappable dual network port rack-mounted industrial server |
| Product brand | YANKEN |
| Product model | SR550 |

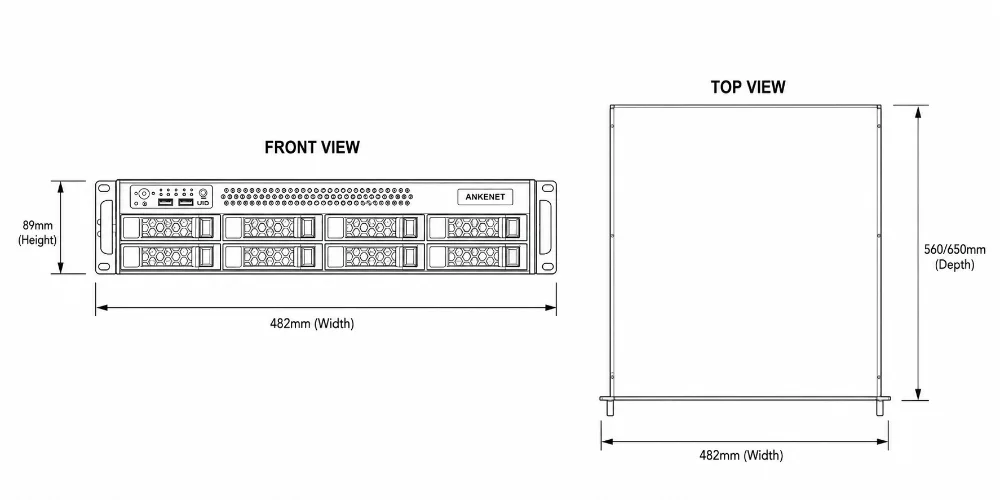

| Chassis size | 482mm (width) × 560/650mm (depth) × 89mm (height) · 2U |
| hard disk expansion | Standard configuration: 8 front hot-swappable hard drive slots (compatible with 2.5/3.5-inch mechanical and solid-state drives) |
| Cabinet compatible | Compatible with all standard 19-inch rack cabinet installations |
Technical parameters
| Specification parameters | Xeon E5 Single Socket | Xeon E5 Dual Socket | Bronze/Silver/Gold Medal Single Channel | Bronze/Silver/Gold dual-socket |
|---|---|---|---|---|
| Processor (CPU) | Xeon E5 single channel | Xeon E5 Dual-Socket | Xeon Bronze/Silver/Gold Single Channel | Xeon Bronze/Silver/Gold Dual-Socket |
| Memory (RAM) | Max 128GB | Maximum 256GB | Max 128GB | Maximum 256GB |
| Hard disk (Storage) | 8×SATA; 1×M.2 | 8×SATA; 1×M.2 | 6×SATA; 1×M.2 | 8×SATA; 1×M.2 |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port | 2×Gigabit network port | 2×Gigabit network port |
| RAID array | RAID 0/1/5/10 | RAID 0/1/5/10 | RAID 0/1/5/10 | RAID 0/1/5/10 |
| BMC remote management | Not supported | support | support | support |
| Expansion slot | 2×PCIe x16 + 1×PCIe x4/x1 | 4×PCIe x16 | 1×PCIe x16 + 2×PCIe x8 | 3×PCIe x16 + 3×PCIe x8 |
| Chassis size (depth) | 560mm | 650mm | 560mm | 650mm |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Tongzuo | Tongzuo | Tongzuo |
