Core Highlights

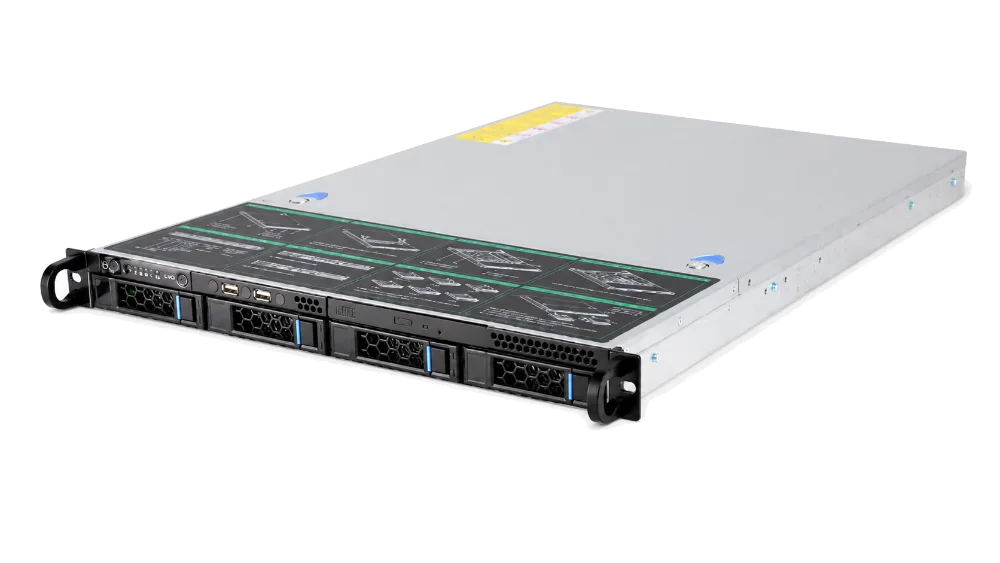

storageComes standard with 4 front hot-swappable hard drive slots, compatible with 2.5/3.5-inch mechanical or solid-state drives
expansion cardSupports 1U expansion of full-height expansion card through 90° right-angle adapter card, flexible combination with graphics card/network card/fiber optic card
showVGA + HDMI dual display interface, supporting dual-screen synchronization and asynchronous independent display
CabinetCompatible with standard 19-inch cabinet installation, suitable for mainstream data center or industrial cabinet deployment
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information
| Product name | 1U hot-swappable rackmount industrial server |
| Product brand | YANKEN |
| Product model | S156-1 |
| physical size | 482mm (width) × 560mm (depth) × 45mm (height) · 1U |
| Cabinet compatible | Compatible with standard 19-inch rack installation |
Technical parameters
| Specification parameters | Intel 6~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 6th to 11th generation Core / Xeon processors | Intel 12th~14th generation Core / Xeon processor |
| Memory (RAM) | Maximum support 64GB | Maximum support 64GB |
| Hard disk (Storage) | 4×SATA hard drive; 1×MSATA hard drive | 4×SATA hard drive; 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| display interface | VGA + HDMI, supports dual-screen synchronous/asynchronous display | VGA + HDMI, supports dual-screen synchronous/asynchronous display |

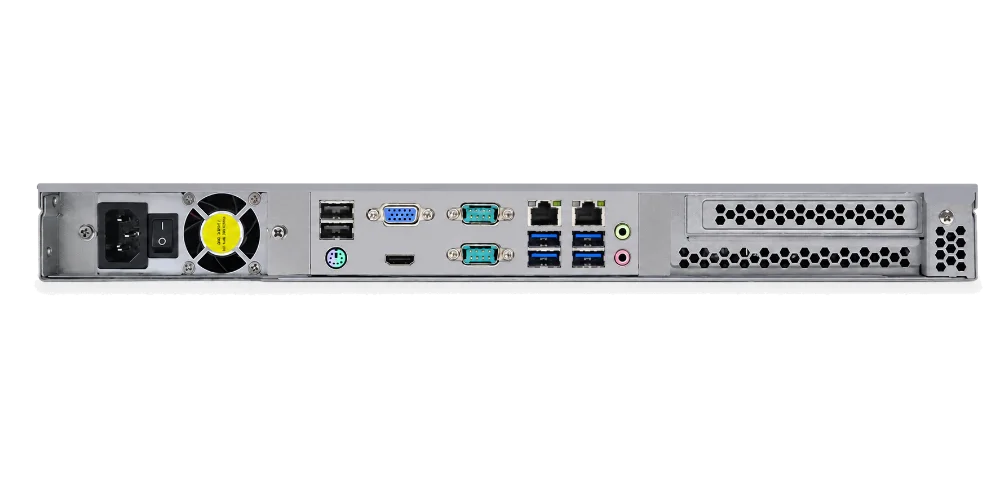

| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 |
| COM serial port | 2×RS232 (can be set to RS422/485 by jumper) | 2×RS232 (can be set to RS422/485 by jumper) |
| Expansion slot | 1×PCIe x16 full-height expansion slot (requires extension card) | 1×PCIe x16 full-height expansion slot (requires extension card) |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
