Core Highlights
TouchTen-point capacitive touch screen, precise touch, responsive and no touch blind spots
protectionAll-pure flat panel professionally designed to reach IP65 waterproof and dustproof rating
Heat dissipationLarge-area aluminum plate fins for heat dissipation, fanless, completely silent, high and low temperature resistant, efficient heat dissipation design
runSupports 7×24 hours stable operation, supports power-on startup (self-starting when incoming calls), and network wake-up
ExpandUp to 4×COM serial ports at the rear (3×RS232 + 1×RS485); supports 1×wireless WiFi expansion slot
InstallationSupports multiple installation combinations of embedded (with embedded buckles), wall-mounted, and desktop
systemWindows is pre-installed for free by default, supporting Windows/Linux/Ubuntu/CentOS/Server and other systems
Application scenarios

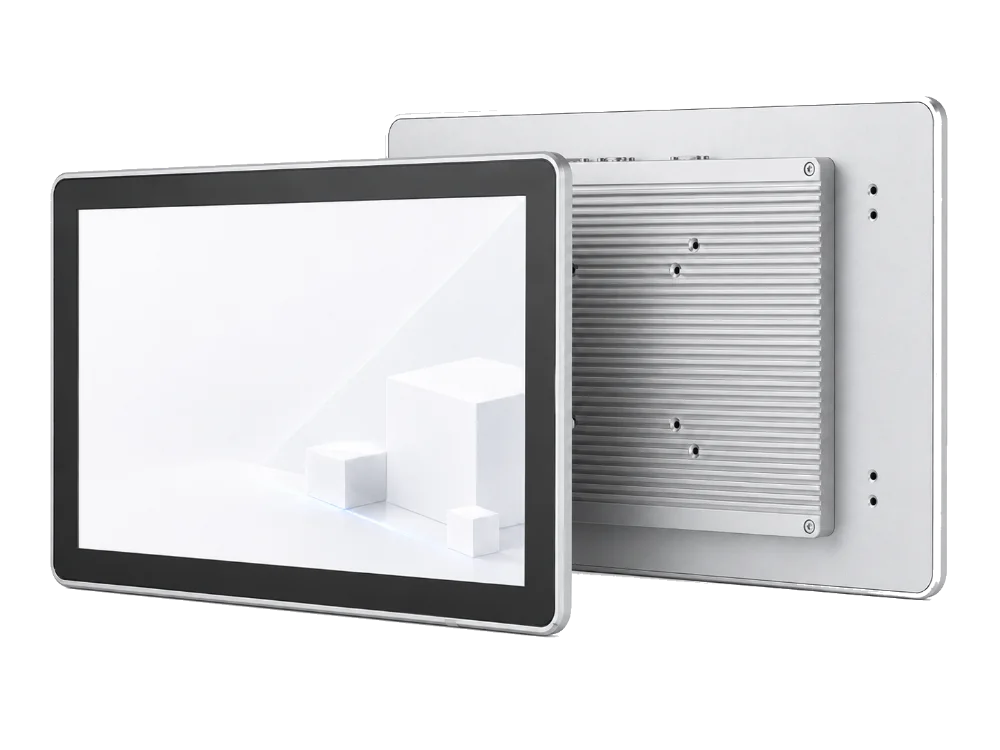

Basic product information
| Product name | Industrial touch tablet |
| Product brand | YANKEN |
| Product model | PPC-312 |
| Craftsmanship appearance | All-aluminum craftsmanship; pure flat panel waterproof design; switch wear-resistant and anti-corrosion; front power indicator light |

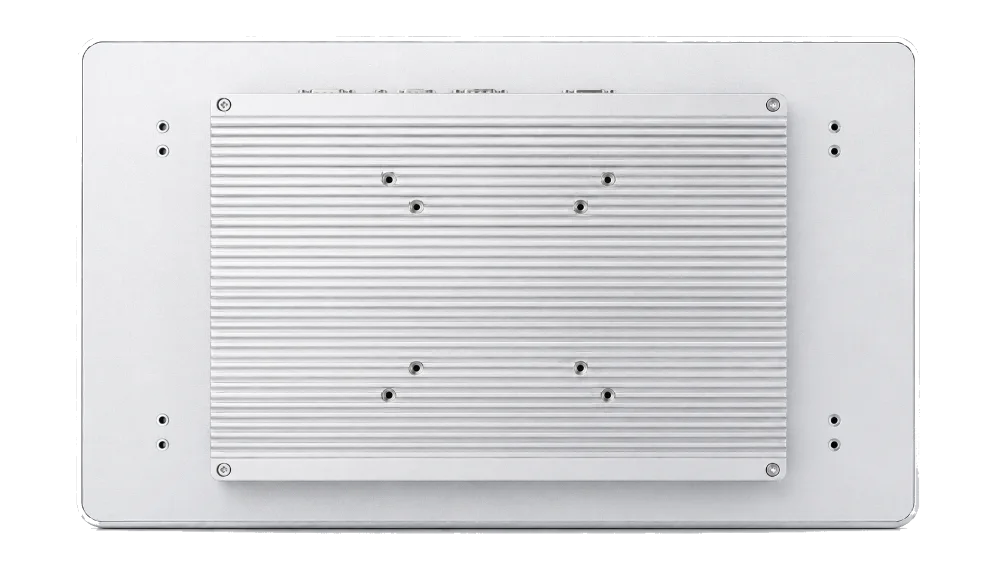

| Heat dissipation structure | Large-area aluminum plate fins on the back for efficient fanless passive heat dissipation |
| Installation support | Embedded buckles and fixing strips are shipped by default to support inline installation; optional wall-mounted brackets and desktop brackets are supported |
Technical parameters
| Technical parameter items | Specifications and configuration description |
|---|---|
| Processor (CPU) | Intel Celeron J1900; Core i3-5005U; i5-5200U; i7-5500U |
| Memory (RAM) | Standard 4GB / 8GB; maximum support 8GB |
| Hard disk (Storage) | MSATA solid state (128G/256G/512G optional) + 1×2.5″ chassis hard drive bay (1TB/2TB optional) |
| Network interface (LAN) | 2×Gigabit network port |
| show output | 1×VGA; 1×HDMI (supports high-definition and dual-screen independent output) |
| USB interface | 3×USB2.0; 1×USB3.0 |
| COM serial port | 3×RS232; 1×RS485 (a total of 4×COM at the rear of the chassis) |
| wireless extension | 1×Wireless WiFi expansion slot |
| Power supply interface | 12V (DC circular interface); 12V (Phoenix terminal port) |
| working temperature | -10℃～55℃; storage -20℃～70℃ |
| Support system | Windows / Linux / Ubuntu / CentOS / Server |
