Core Highlights
screenIntegrated portable shock-proof design, natively integrated with four 17.3-inch 1920×1080 high-definition LCD folding screens
expansion card1×PCIe x16 full-height card slot, supports expansion of independent graphics cards, 10G fiber optic network cards, and multi-channel display output cards
peripheralsIntegrated embedded keyboard and touch mouse; front security lock; rubber protective pad
batterySupports optional customized built-in battery with battery life of about 1 to 2 hours
serial port2×RS232 serial ports, support jumper setting to RS422/485
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information

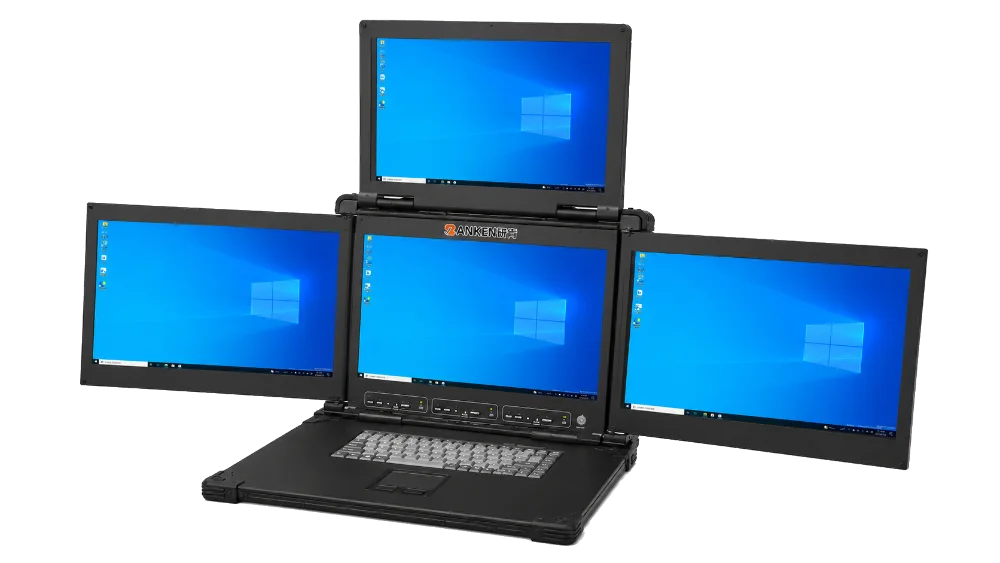

| Product name | Portable 17.3-inch four-screen multi-screen industrial workstation |
| Product brand | YANKEN |
| Product model | N223C |

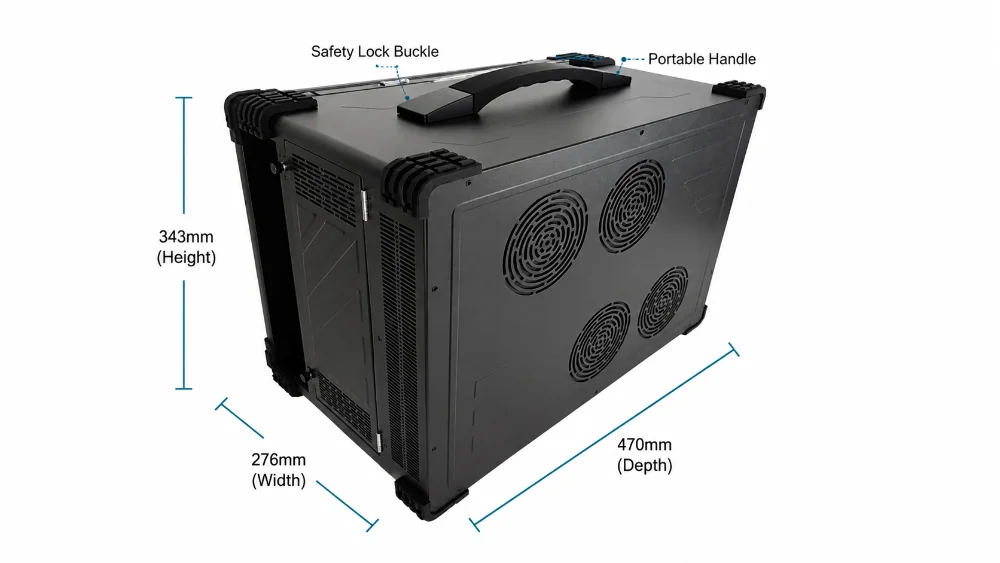

| physical size | 470mm (width) × 343mm (depth) × 276mm (height) |

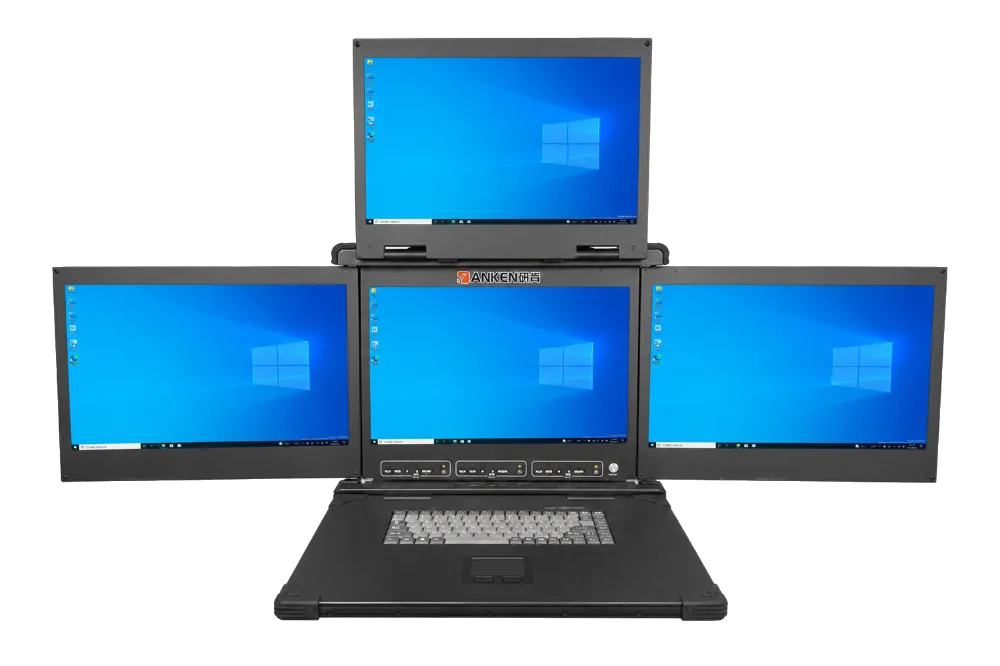

| screen design | Native integration of 4 17.3-inch 1920×1080 HD LCD folding screens |
Technical parameters
| Specification parameters | Intel 6~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 6th to 11th generation Core i3/i5/i7/i9 | Intel 12th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum support 64GB | Maximum support 64GB |
| Hard disk (Storage) | 2×SATA hard drive; 1×MSATA hard drive | 2×SATA hard drive; 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| display system | 4×17.3 inches 1920×1080 LCD display | 4×17.3 inches 1920×1080 LCD display |
| display interface | HDMI + VGA, supports dual-screen synchronous/asynchronous display | HDMI + VGA, supports dual-screen synchronous/asynchronous display |

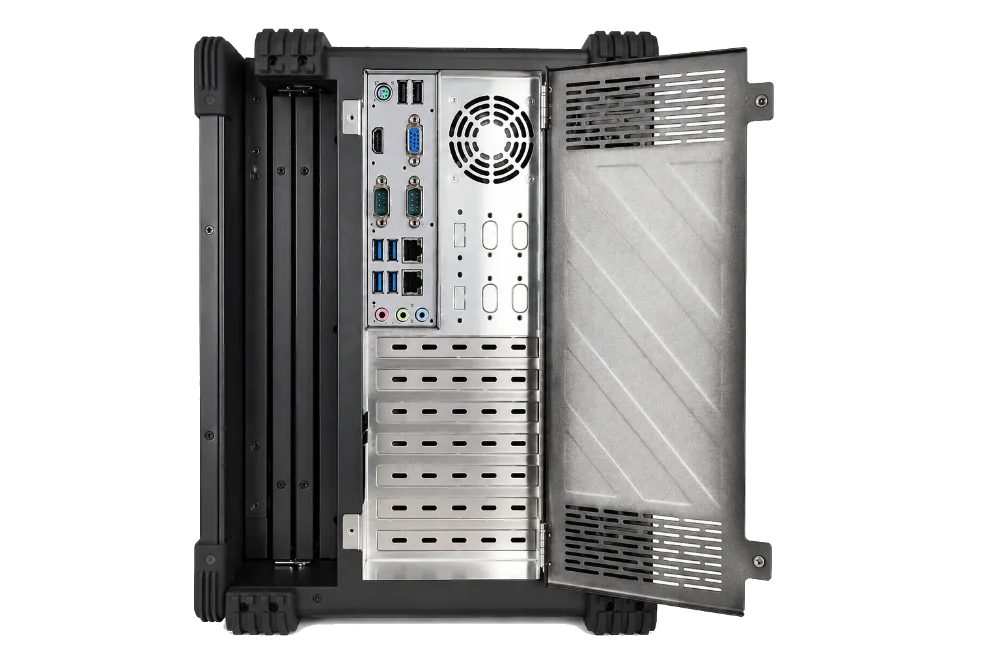

| USB interface | Side: 2×USB2.0 + 4×USB3.0 | Side: 2×USB2.0 + 4×USB3.0 |
| COM serial port | 2×RS232 (COM1/COM2 can be set to RS485/RS422 by jumper) | 2×RS232 (COM1/COM2 can be set to RS485/RS422 by jumper) |
| Expansion slot | 1×PCIe x16 (supports independent graphics card, 10G network port card, multi-channel graphics card) | 1×PCIe x16 (supports independent graphics card, 10G network port card, multi-channel graphics card) |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
