Core Highlights

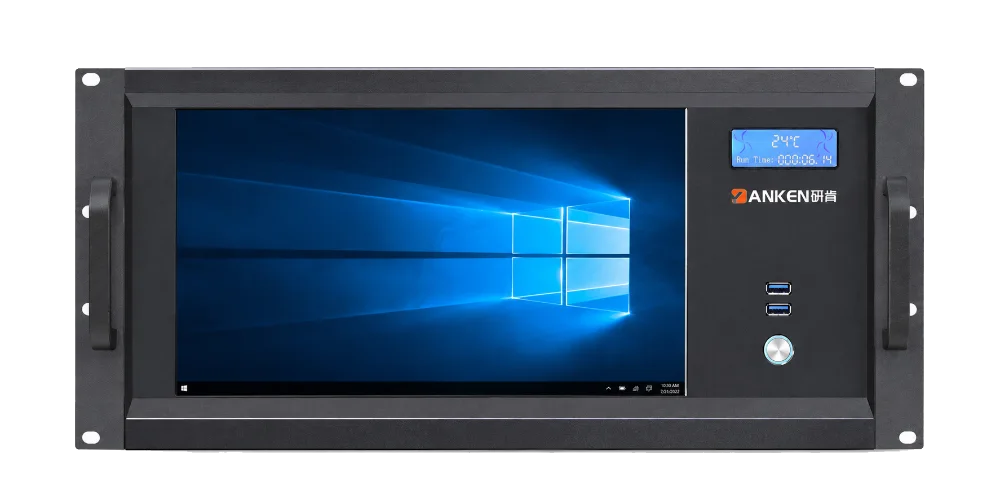

Touch13.3-inch 1920×1080 high-definition ten-point LCD touch screen, sensitive touch and no blind spots
temperature controlThe front LCD temperature control display can display the operating status and temperature control of the chassis in real time.
serial port2×RS232 serial ports, support jumper setting to RS422/485
batterySupports optional customized built-in battery with battery life of about 1 to 2 hours
runSupports long-term stable operation 7×24 hours, supports power-on and wake-up on network
systemSupports mainstream operating systems such as Windows / Linux / Ubuntu / CentOS / Server
Application scenarios
Basic product information
| Product name | 5U full touch 13.3-inch rack-mounted industrial computer |
| Product brand | YANKEN |
| Product model | IPC-510M |
| physical size | 482mm (width) × 480mm (depth) × 222mm (height) · 5U |
| Temperature control function | Front LCD temperature control display, which can monitor the running status of the chassis in real time |
Technical parameters
| Specification parameters | Intel 6~11th generation platform | Intel 12th~14th generation platform |
|---|---|---|
| Processor (CPU) | Intel 6th to 11th generation Core i3/i5/i7/i9 | Intel 12th~14th generation Core i3/i5/i7/i9 |
| Memory (RAM) | Maximum support 64GB | Maximum support 64GB |
| Hard disk (Storage) | 2×SATA hard drive; 1×MSATA hard drive | 2×SATA hard drive; 1×M.2 hard drive |
| Network port (LAN) | 2×Gigabit network port | 2×Gigabit network port |
| Display | 13.3-inch 1920×1080 touch display | 13.3-inch 1920×1080 touch display |
| display interface | HDMI + VGA, supports dual-screen synchronous/asynchronous display | HDMI + VGA, supports dual-screen synchronous/asynchronous display |
| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 |
| COM serial port | 2×RS232 (can be set to RS485/RS422 by jumper) | 2×RS232 (can be set to RS485/RS422 by jumper) |
| Expansion slot | 1×PCIe x16 expansion slot | 1×PCIe x16 expansion slot |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server | Windows / Linux / Ubuntu / CentOS / Server |
