Core Highlights

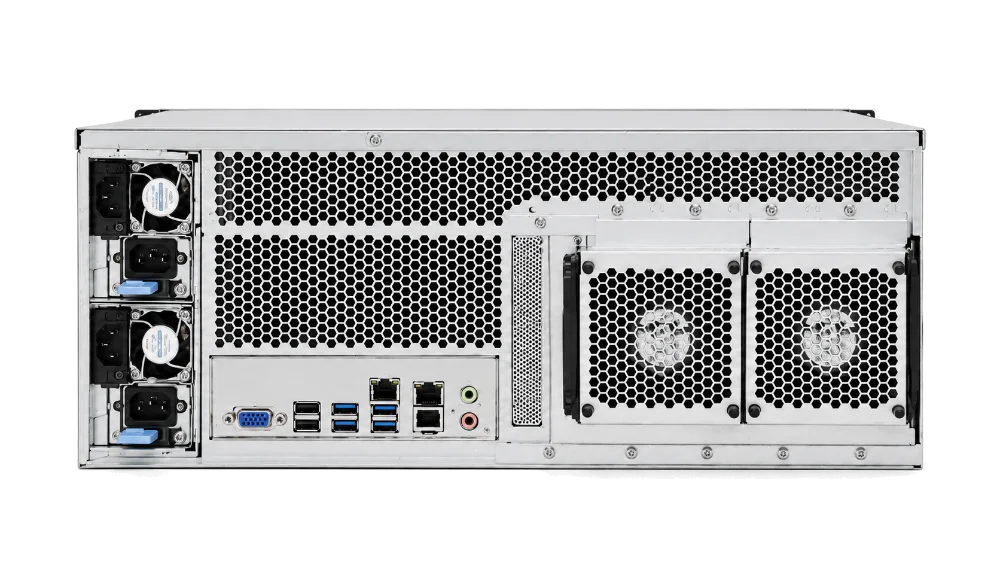

expansion cardThe rear of the chassis has 4×PCIe x16 full-height direct expansion card slots, which can be fully loaded with multiple powerful GPU independent graphics cards and fiber optic network cards.
storageSupports 1×M.2 + 4×SATA hard drive expansion and supports the formation of RAID 0/1/5/10 disk arrays
power supplyStandard 800W high-power power supply, and redundant dual power supply customization is provided to meet uninterrupted high-redundancy power supply
BMCIntegrated BMC remote management port facilitates remote troubleshooting, hardware health monitoring and power on/off
CabinetCompatible with 19-inch standard rack cabinet deployment, 4U (177mm) standard industrial height
systemThe default free pre-installed Server system is shipped, compatible with Windows/Linux/Ubuntu/CentOS/Server
Application scenarios
Basic product information

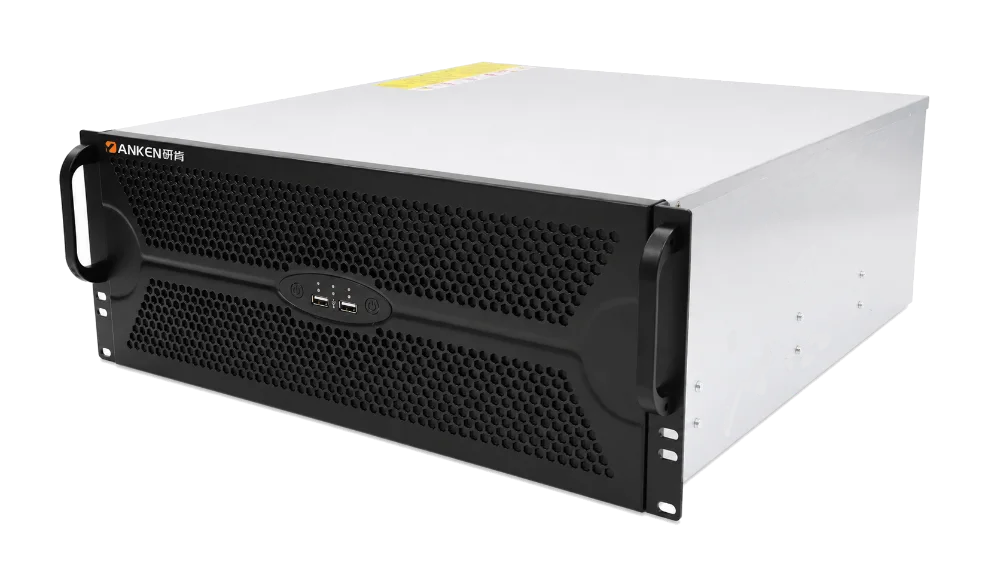

| Product name | 4U hot-swappable dual network port GPU rack-mounted industrial workstation |
| Product brand | YANKEN |
| Product model | HPC-620 |

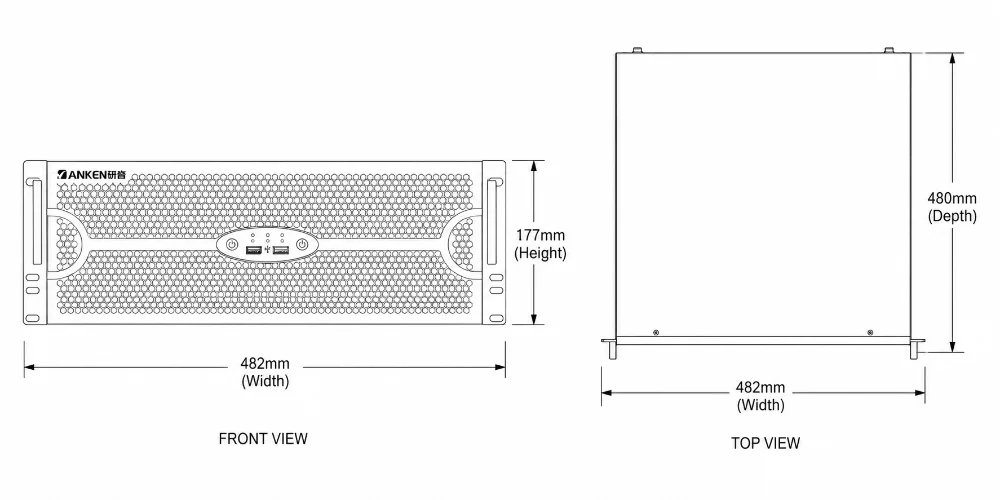

| physical size | 482mm (width) × 480mm (depth) × 177mm (height) · 4U |
| Rack adaptation | Standard 19-inch rack installation support |
Technical parameters
| Specification parameters | AMD EPYC Platform |
|---|---|
| Processor (CPU) | AMD EPYC server processor (such as EPYC 7K62, etc.) |
| Memory (RAM) | Maximum support 512GB |
| Hard disk (Storage) | 1×M.2 hard drive + 4×SATA hard drive |
| Network port (LAN) | 2×Gigabit network port |
| RAID array | Supports RAID 0/1/5/10 arrays |
| display interface | VGA display |
| USB interface | Front: 2×USB2.0; Rear: 2×USB2.0 + 4×USB3.0 |
| BMC Management | Support BMC remote management port |
| Expansion slot | 4×PCIe x16 expansion slots (full height direct plug) |
| power supply | Standard 800W, optional hot-swappable redundant dual power supplies |
| Support system (OS) | Windows / Linux / Ubuntu / CentOS / Server |
